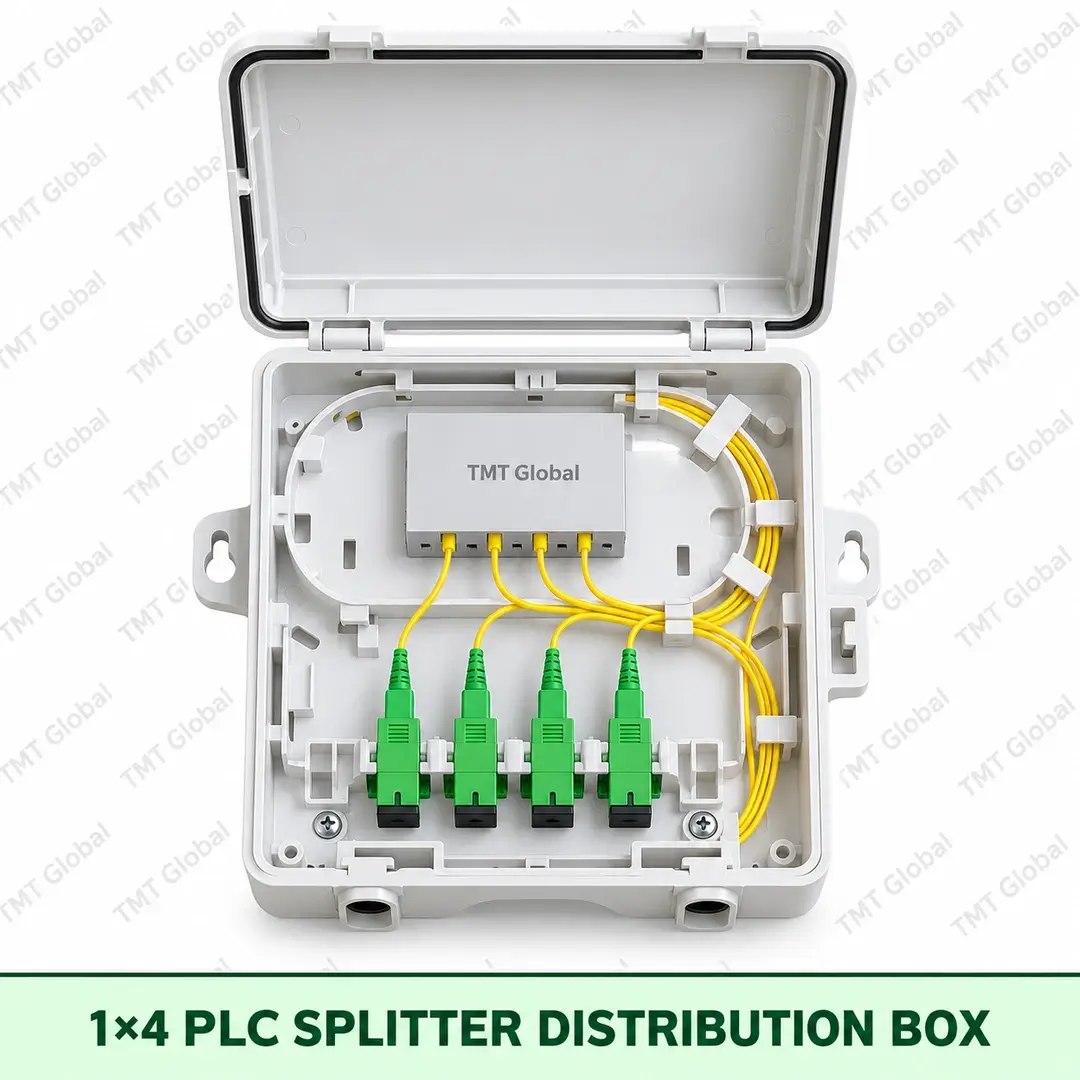

1×4 PLC Splitter Distribution Box
KEY FEATURES
- 4-fibre termination capacity
- Flame-retardant ABS/PC enclosure construction
- SC/APC preferred interface configuration
- Bend-radius controlled fibre routing
- Splice sleeve and fibre management
- Cable entry and strain-relief provision
Full specifications & datasheet: tmtglobal.co.uk →
Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote
TMT Global 1×4 PLC Splitter Distribution Box Series
The TMT Global 1×4 PLC Splitter Distribution Box is designed for protected fibre termination, splicing and adapter presentation in plc splitter applications. The enclosure provides controlled fibre routing, splice protection and service access for 4-fibre installations, with SC/APC preferred connectivity and splitter loaded configuration.
KEY FEATURES
- 4-fibre termination capacity
- Flame-retardant ABS/PC enclosure construction
- SC/APC preferred interface configuration
- Bend-radius controlled fibre routing
- Splice sleeve and fibre management
- Cable entry and strain-relief provision
APPLICATIONS
- FTTH / PON distribution
- Access network distribution
- Building / MDU fibre distribution
- Telecom and fibre cabinets
OEM / PUBLICATION POSITIONING
Installation: secure the enclosure to the specified wall/pole surface, anchor incoming cable, maintain fibre bend radius and protect all splices. Ordering: TMT-FDB-04-SP14 defines the controlled base SKU; colour and minor accessories may be managed as approved options only when they do not change the technical design. Packaging: individual protective pack with SKU identification; mounting hardware/accessories as declared. OEM acceptance: supplier shall match capacity, material, interface, loading, splitter provision and environmental construction shown above and provide configuration/material evidence for approval before commercial release.
STANDARDS / TEST BASIS
- System application — ISO/IEC 11801 structured cabling context
- Connector interfaces — IEC 61754 interface family where adapters are fitted
- Passive component testing — IEC 61300 series where applicable
- Material compliance — RoHS / REACH declarations required where applicable
- Housing fire performance — UL 94 V-0 polymer target only where supported by material evidence
- Outdoor ingress protection — IEC 60529 rating only when supported by enclosure test evidence
QUALITY / ACCEPTANCE
- OEM acceptance: supplier shall match capacity, material, interface, loading, splitter provision and environmental construction shown above and provide configuration/material evidence for approval before commercial release.
TECHNICAL SPECIFICATION
| Brand | TMT Global |
|---|
